2.1 Series connection of resistors

If the power consumers (resistors) are arranged one after another so that the same current flows through them one speaks of a series connection (e.g. electric Christmas tree lights).
Furthermore, each supply line to a power consumer also represents at the same time an into series switched resistor.

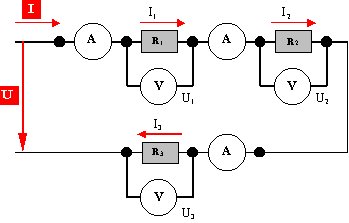

Diagram 16: Series connection with three power consumers (resistors switched into series)



For series connections the following formulas apply:


1. Total amperage I or ITotal



2. Total voltage U or UTotal



3. Total resistance R or RTotal


If the electric circuit of a series connection is interrupted at one point no current can flow anymore.
