So e.g., it is in every
salad sauce prepared with vinegar and common salt. The used white oil serves
also as a raw product in the cosmetics industry. Diagram 48 shows the function
of a latent heat storage system.

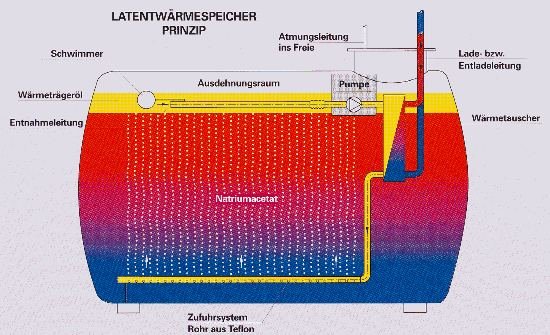

Diagram 48: Function of a latent heat storage system
| Latentwärmespeicher Prinzip | = | Latent heat storage principle |
| Schwimmer | = | Float |
| Atmungsleitung ins Freie | = | Ventilation pipe to the outside |
| Lade- bzw. Entladeleitung | = | Loading or unloading pipe |
| Wärmeträgeröl | = | Heat carrying oil |
| Entnahmeleitung | = | Unloading pipe |
| Ausdehnungsraum | = | Expansion space |
| Pumpe | = | Pump |
| Wärmetauscher | = | Heat exchanger |
| Natriumacetat | = | Sodium acetate |
| Zufuhrsystem Rohr aus Teflon | = | Supply pipe made of teflon |

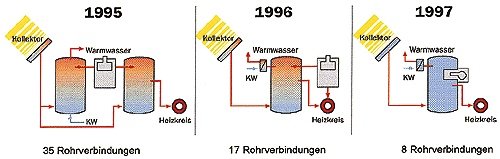

Diagram 49 shows an example
of the technical progress the solar energy technology has went through alone
in the three years from 1995 to 1997. In general, a trend can be noticed towards
always more compact installations. One goal of today's technical development
work is to produce long-term storage systems with a high energy storing capacity
as well as very effective layer storage systems for the immediate use of the
solar energy produced.
Diagram 49: Example for the technical progress in the solar energy technology
from 1995 to 1997
| Kollektor | = | Collector |
| Kilowatt | = | Kilowatt |
| Warmwasser | = | Warm water |
| Heizkreis | = | Heating system circulation |
| Rohrverbindungen | = | Pipe connections |
